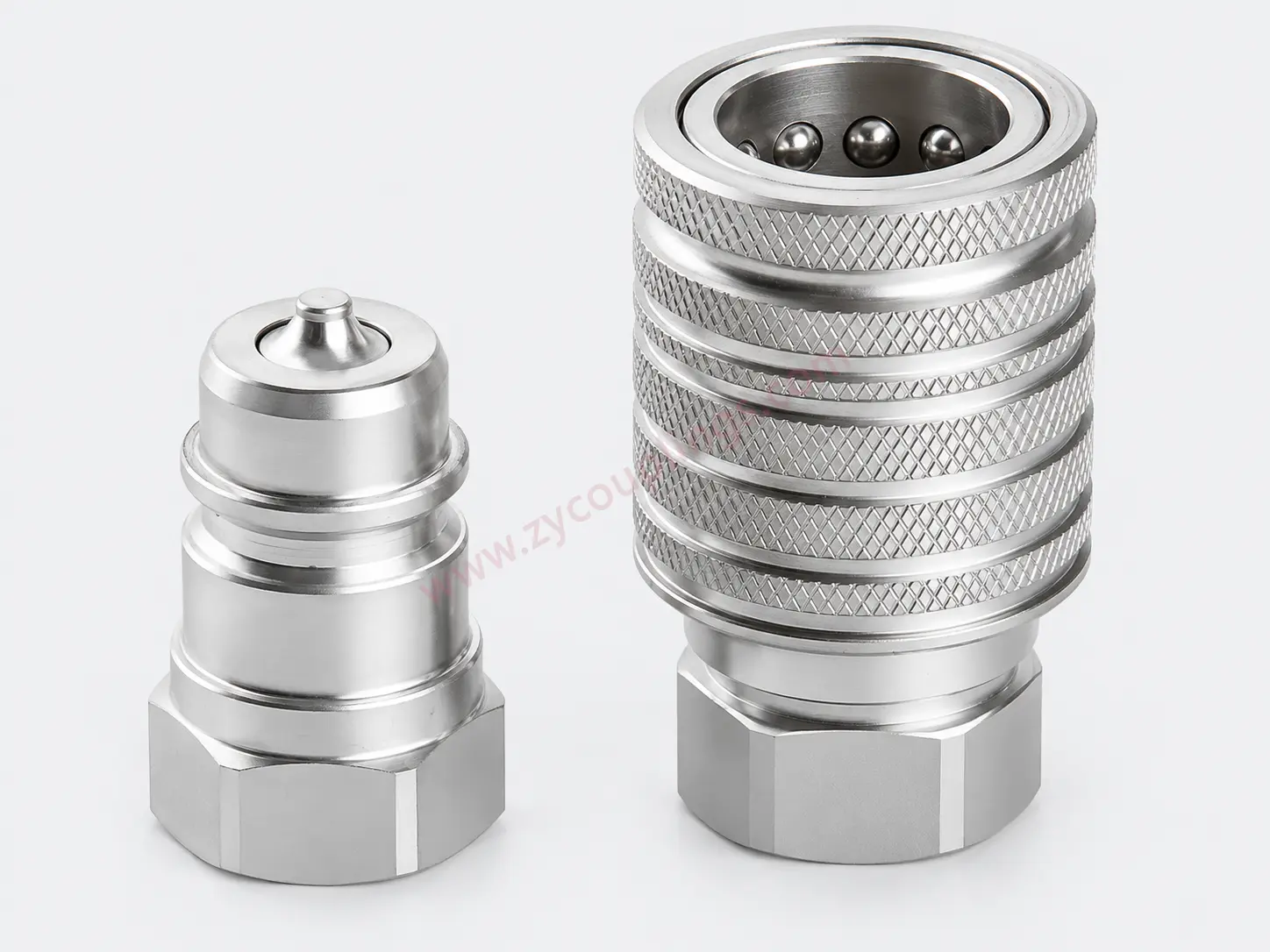

ZY-CT Series

ZY-CT push-pull hydraulic quick couplings for construction equipment, forestry equipment, agricultural machinery, and oil tools.

Inquire Now

Features

The double-acting sleeve supports one-handed push-to-connect operation when clamp or bulkhead mounted.
Poppet valves are available to prevent uncoupled leakage.
Poppet valves open automatically when coupled within rated working pressure to maintain flow.
Critical parts are hardened for durability.
A dependable ball-locking mechanism holds the mating halves together.
Socket and plug are precision machined from solid bar stock.
The ZY-CT Series conforms to ISO 5675.
Compatible with PARKER 4250 and FASTER CPV-CNV series.

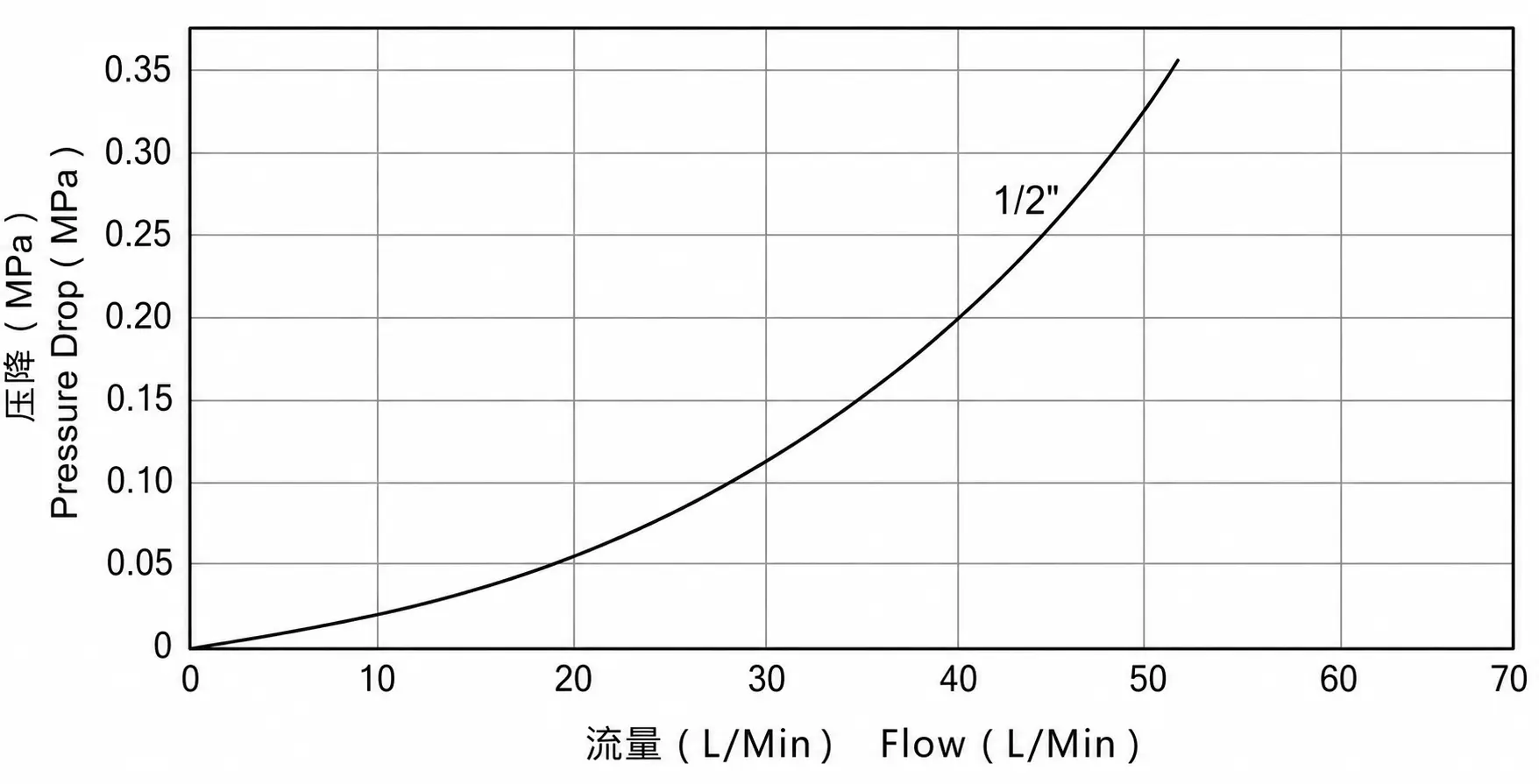

The performance curve shows pressure-drop changes at rated flow.

Test Fluid: Oil-200SUS

The push-pull coupling supports fast connection and automatic shut-off when disconnected.

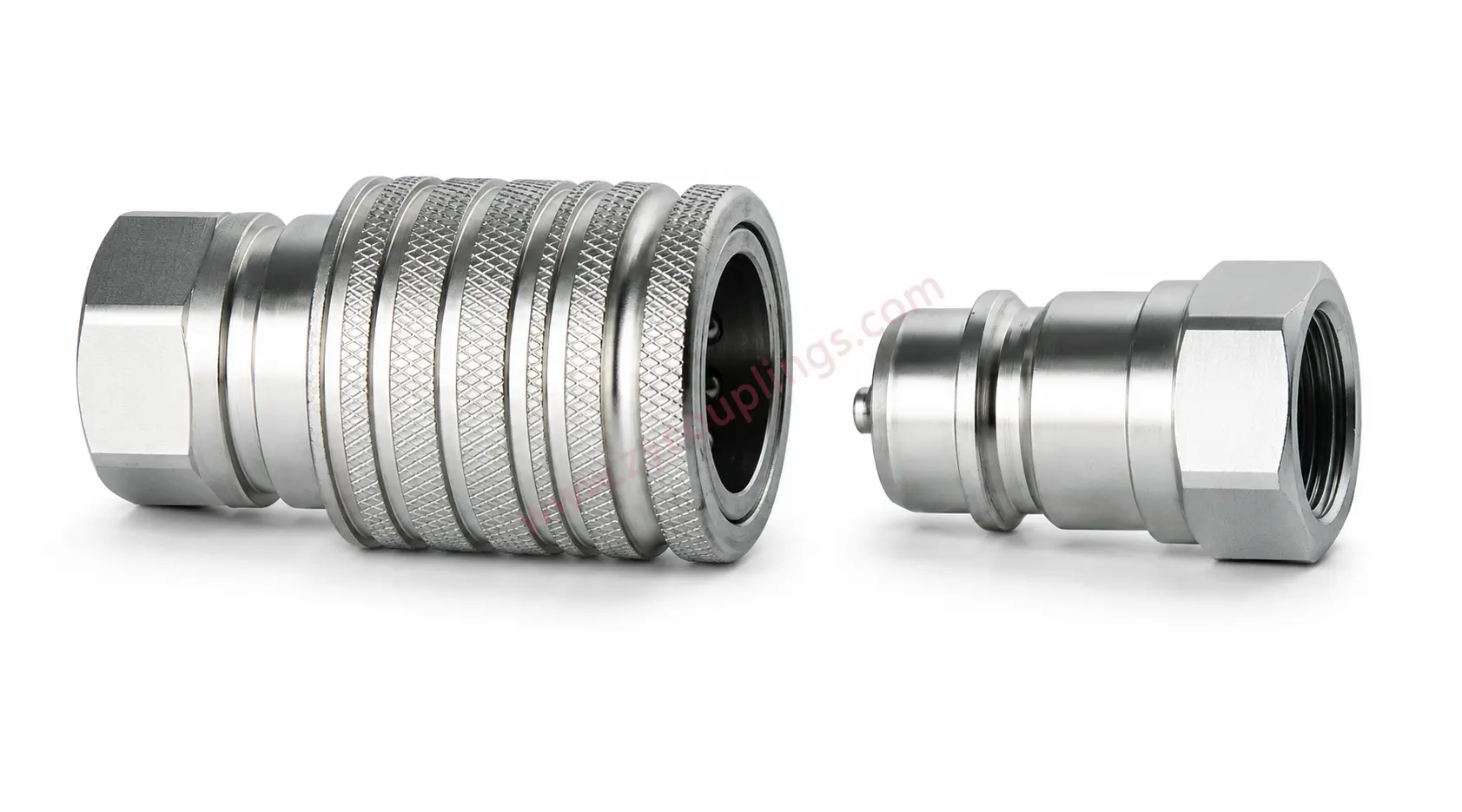

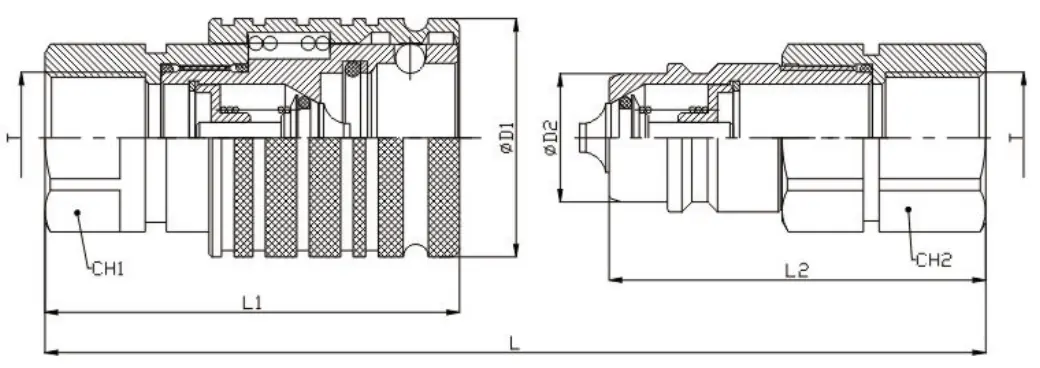

PART No.	L	L1	L2	L3	D1	D2	CH1	CH2	T
ZY-CT-04F3/8	105.5	66	61.5	27	38	20.5	27	27	G3/8 NPT3/8
ZY-CT-04F1/2	105.5	66	44	27	38	20.5	27	27	G1/2 NPT1/2
ZY-CT-04F3/4	105.5	69	64.5	27	38	20.5	34	34	G3/4 NPT3/4
ZY-CT-04FM14	105.5	66	61.5	27	38	20.5	27	27	M14*1.5
ZY-CT-04FM16	105.5	66	61.5	27	38	20.5	27	27	M16*1.5
ZY-CT-04FM18	105.5	66	61.5	27	38	20.5	27	27	M18*1.5
ZY-CT-04FM22	105.5	66	44	27	38	20.5	27	27	M22*1.5

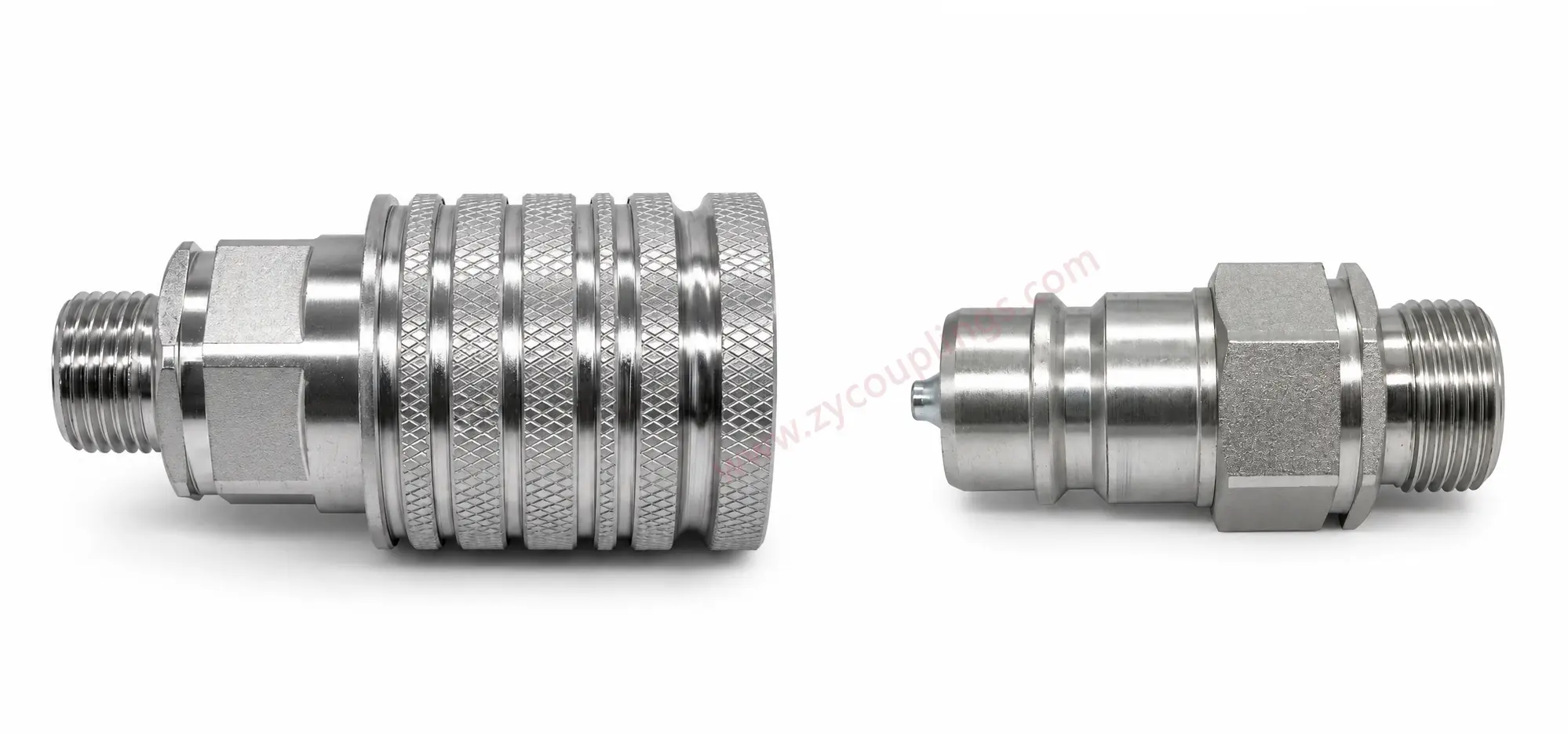

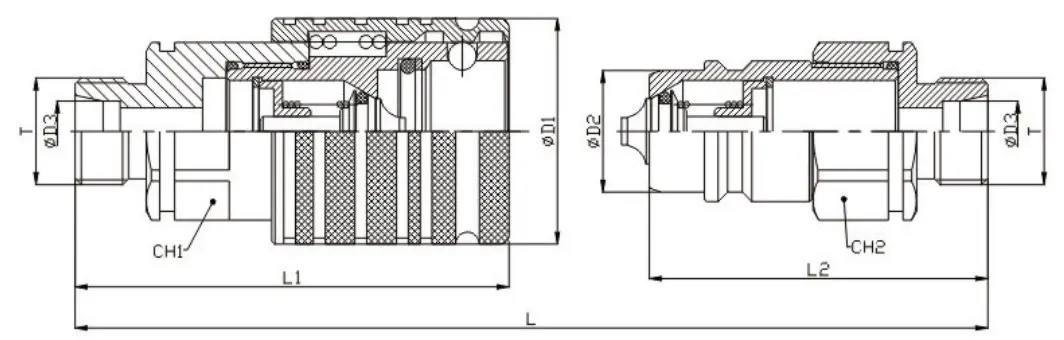

PART No.	L	L1	L2	L3	D1	D2	CH1	CH2	T
ZY-CT-04-8L	110	73	58	27	38	20.5	27	27	M14*1.5
ZY-CT-04-10L	110	73	58	27	38	20.5	27	27	M16*1.5
ZY-CT-04-12L	110	73	58	27	38	20.5	34	34	M18*1.5
ZY-CT-04-15L	114	75	60	27	38	20.5	27	27	M22*1.5
ZY-CT-04-18L	114	75	60	27	38	20.5	27	27	M26*1.5
ZY-CT-04-10S	110	73	58	27	38	20.5	27	27	M18*1.5
ZY-CT-04-12S	110	73	58	27	38	20.5	27	27	M20*1.5
ZY-CT-04-14S	114	75	60	27	38	20.5	27	27	M22*1.5
ZY-CT-04-16S	114	75	60	27	38	20.5	27	27	M24*1.5
ZY-CT-04-20S	128	77	72	27	38	20.5	30	30	M30*2

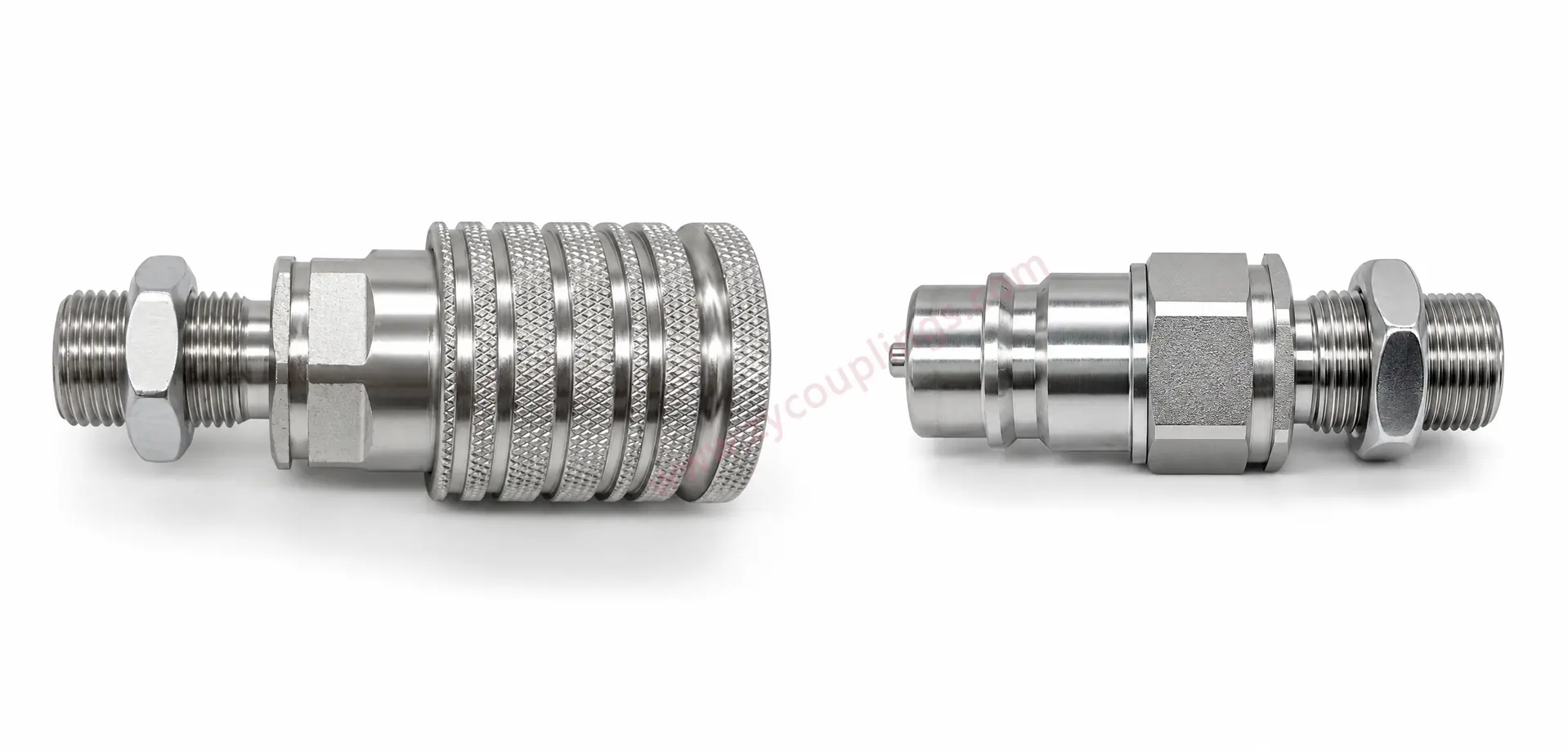

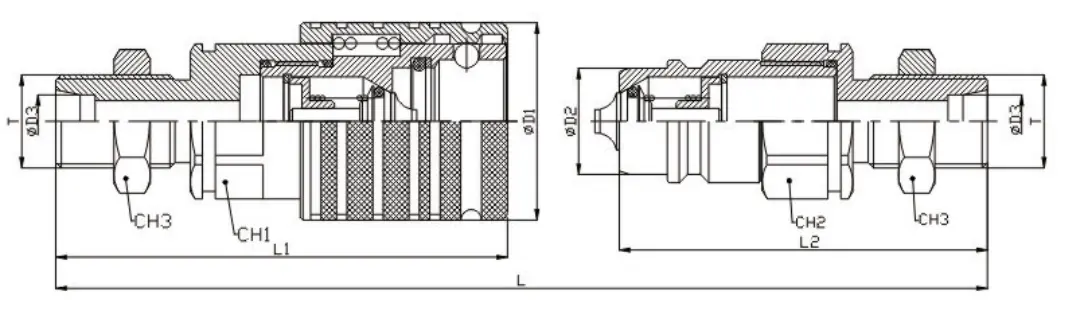

PART No.	L	L1	L2	L3	D1	D2	CH1	CH2	CH2	T
ZY-CT-04-8LC	138	87	72	27	38	20.5	27	27	19	M14*1.5
ZY-CT-04-10LC	138	87	72	27	38	20.5	27	27	24	M16*1.5
ZY-CT-04-12LC	138	87	72	27	38	20.5	27	27	24	M18*1.5
ZY-CT-04-15LC	142	89	74	27	38	20.5	27	27	27	M22*1.5
ZY-CT-04-18LC	142	89	74	27	38	20.5	27	27	30	M26*1.5
ZY-CT-04-10SC	138	87	72	27	38	20.5	27	27	24	M18*1.5
ZY-CT-04-12SC	138	87	72	27	38	20.5	27	27	27	M20*1.5
ZY-CT-04-14SC	142	89	74	27	38	20.5	27	27	27	M22*1.5
ZY-CT-04-16SC	142	89	74	27	38	20.5	27	27	30	M24*1.5
ZY-CT-04-20SC	156	96	81	27	38	20.5	30	30	36	M30*2
