Technical Specifications
| Specification | Value |
|---|
| Body Size (in) | M22*1.5 |
| Material Quality | STEEL |
| Rated Pressure (MPa) | 70 |
| Rated Flow (L/min) | 23 |
| Temperature Range (NBR) | -20℃ to +100℃ |
| Temperature Range (FKM) | -20℃ to +180℃ |
Coupling Fitting

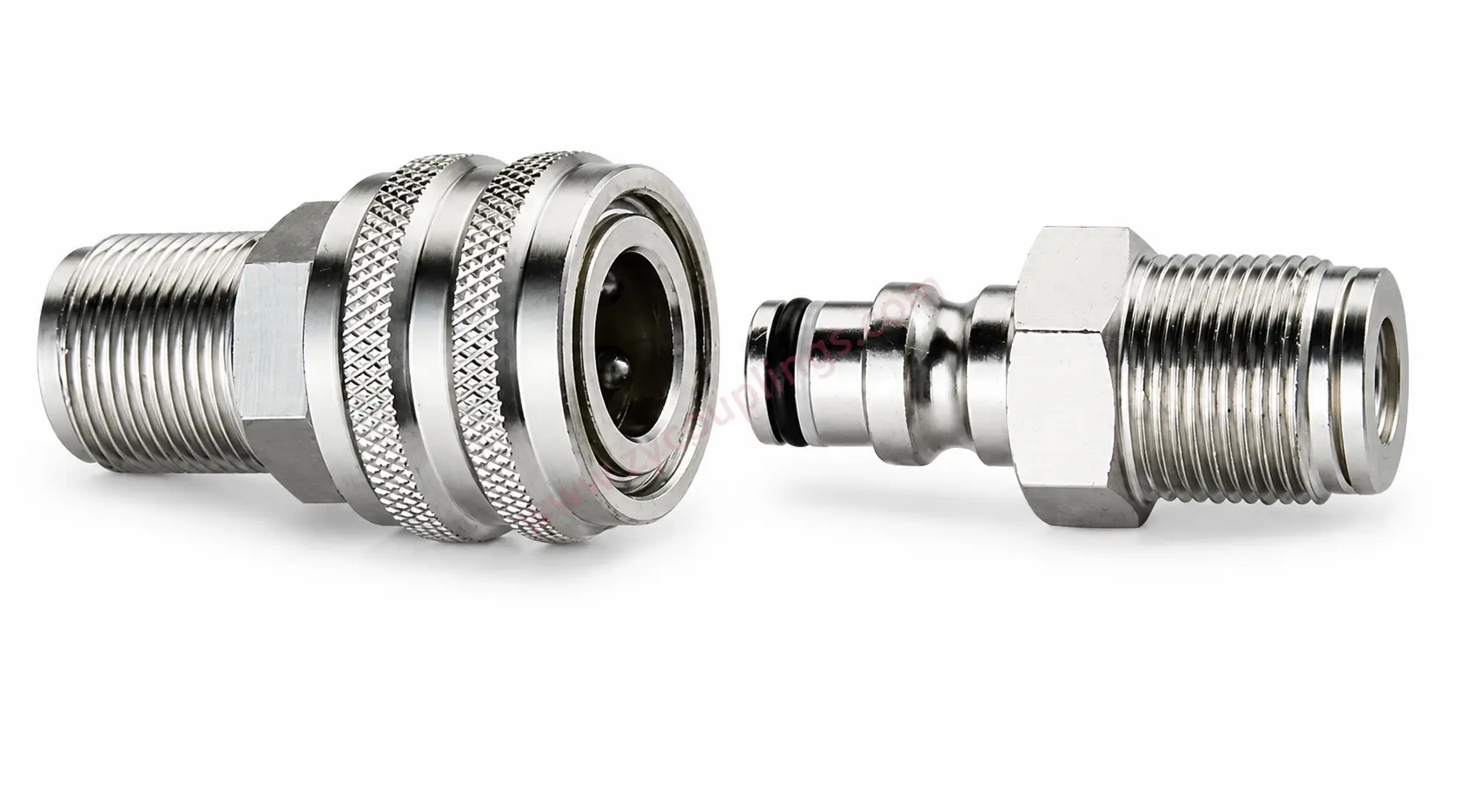

ZY-TQ coupling fitting image

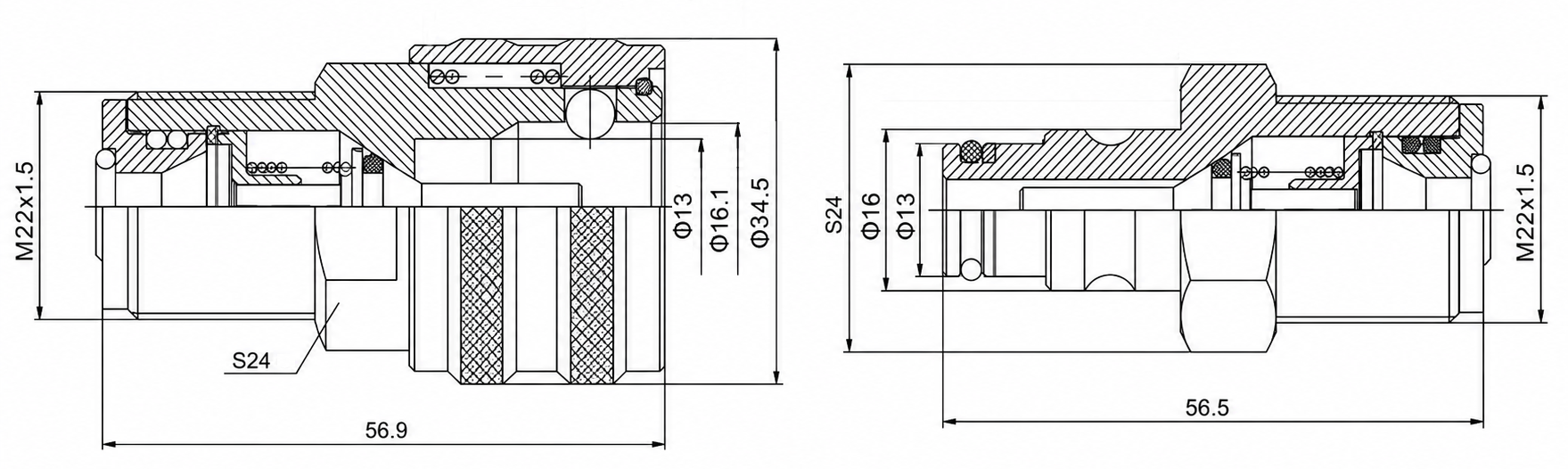

ZY-TQ coupling sectional drawing
