ZY-KSA
ZY-KSA

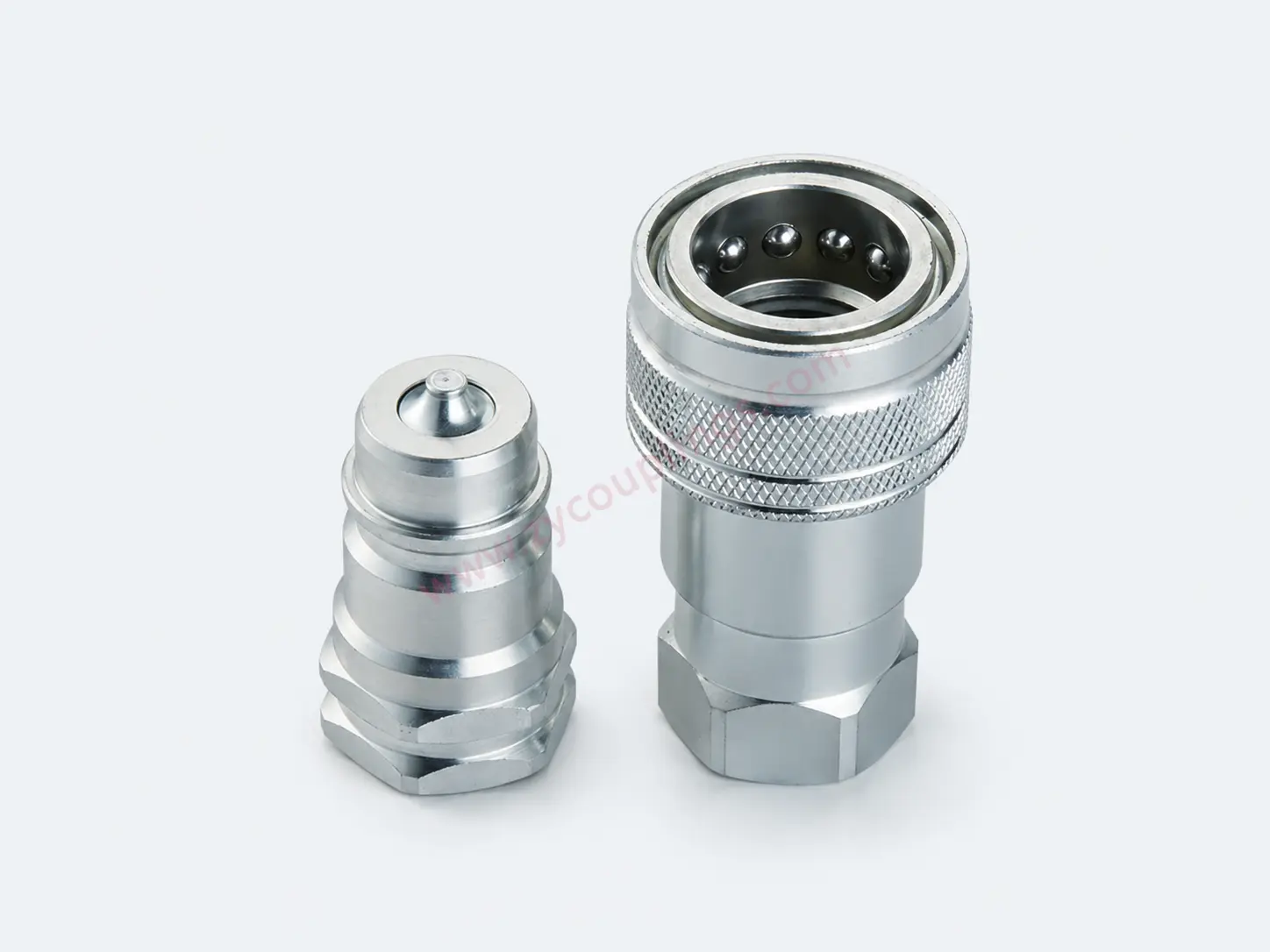

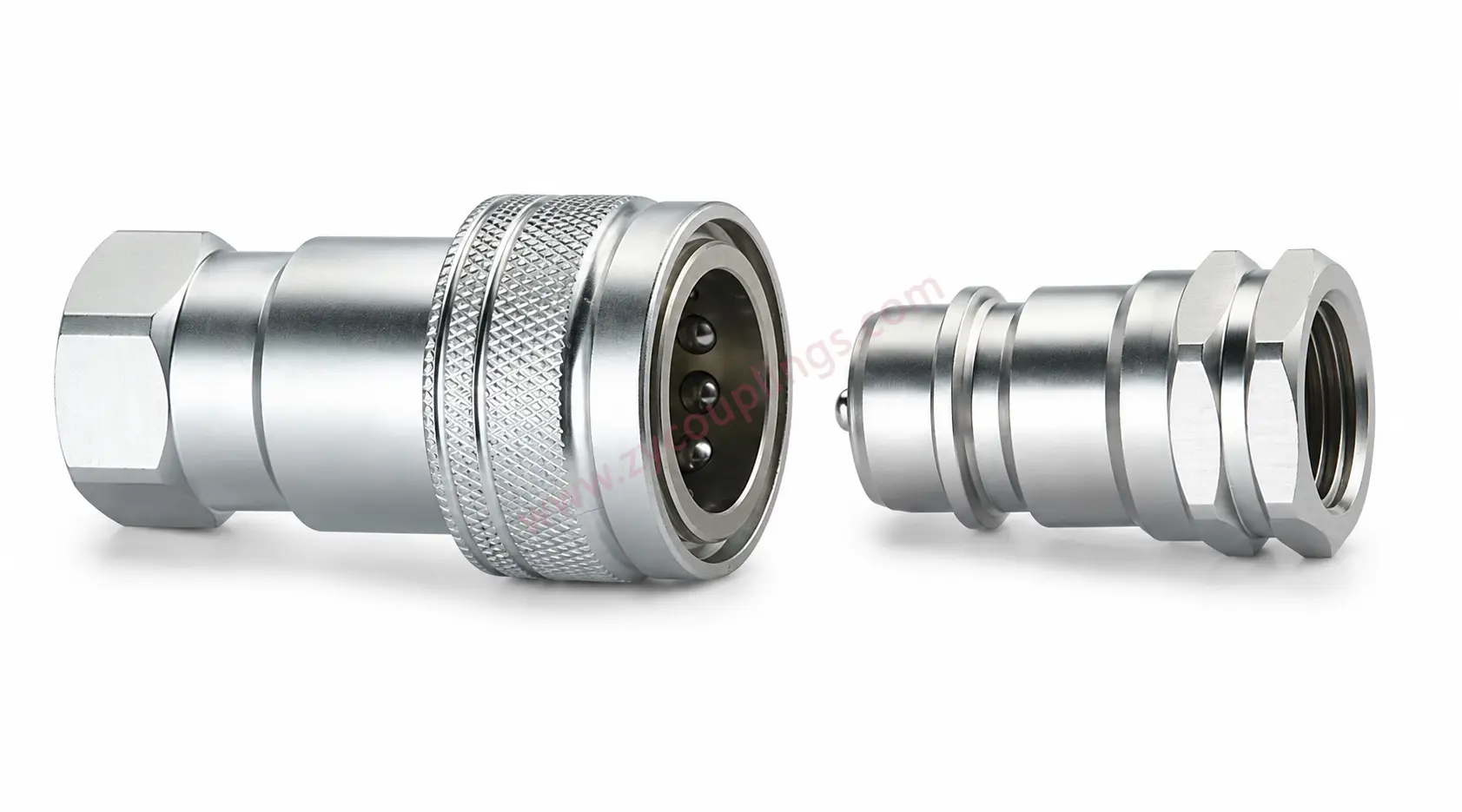

ZY-KSA close type hydraulic quick couplings for construction equipment, forestry equipment, agricultural machinery, hydraulic tools, oil equipment, steel equipment, and other demanding hydraulic applications.
Ask About This Product
Technical Data
Specifications
| Standard | ISO 7241-A |
|---|---|
| Body Material | Carbon steel |
| Body Sizes | 1/4, 3/8, 1/2, 3/4, 1 |
| Rated Pressure | 20.7-34.5 MPa |

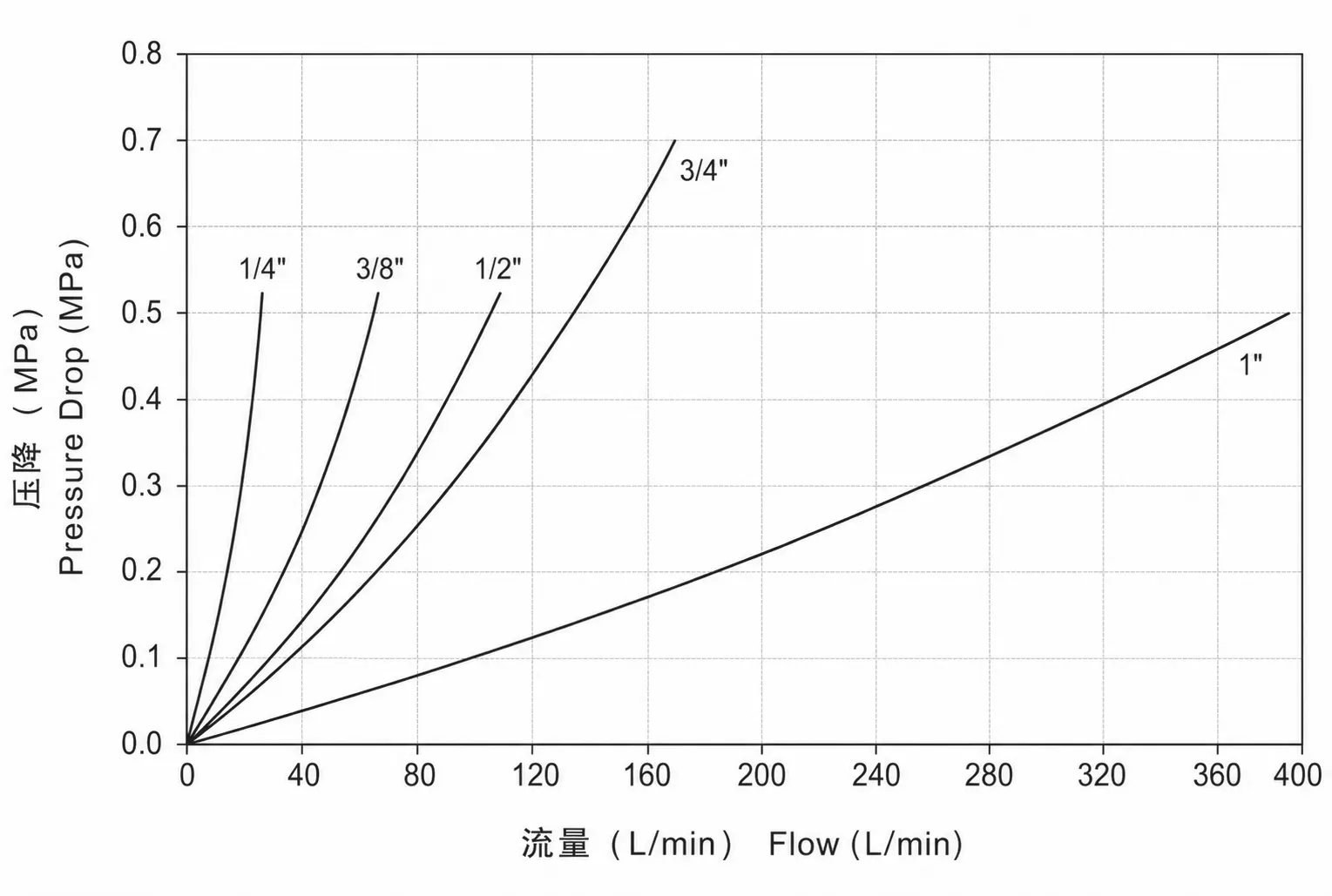

| Rated Flow | 11.5-190 L/min |
| Seal Materials | NBR / FKM |
